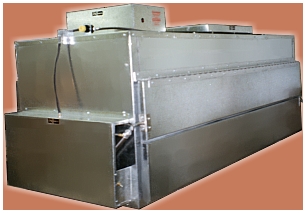

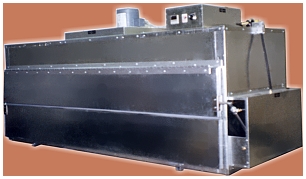

INDUSTRIAL CONVECTION OVEN
TO WARM UP PVC PIPE

Temperature
Operating temperature
Warm up time
.
.
.
Electrical specifications : 120/240 1 phase
: 120/208 3 phases
: 10 kw
Interior dimensions : Height 20"
: Depth 18"
: Width 60"
Exterior dimensions : Height 36" (with engine)
: Depth 18"
: Width 74"
Door openings : Height 18"
: Width 60"
High temperature isulation : 2" on the sides and the rear
: 3" on the roof
Weight 400 lbs / 182 kg
: 0 to 400º Farenheit
: 250 to 300 for plastic
: 15 to 20 minutes
Controled by digital thermostat
.
.
Electrical specifications : 120/240 1 phase
: 120/208 3 phases
: 16 kw
Interior dimensions : Height 20"
:Depth 30"
: Width 72"
Exterior dimensions : Height 36" (with engine)
: Depth 34"
: Width 87"
Door openings : Height 18"
: Width 72"
High temperature insulation : 2" on the sides and the rear
: 3" on the roof
Weight 500 lbs / 228 kg
Each door is activated by an air cylinder. Each door is activated by an air cylinder. (4 doors options)
The interior wall and the exterior finish are either satin or galvanized steel. The interior wall and the exterior finish are either satin or galvanized steel.
Equiped with and interior light.

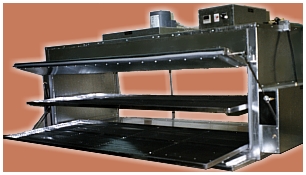

2 chromed interior screen shelves
to allow a better air circulation.		 2 chromed interior screen shelves
to allow a better air circulation.

Advantages : - Maintains uniform heat
- Can heat many pipe lengths at the same time
- You no longer need to plug the pipe ends due to air circulation
- The pipes can be left inside without deterioration

F.O.B. ST-GEORGES, Quebec, Canada

1 Year Part and labor warranty

Les Concepts G.B. Inc
